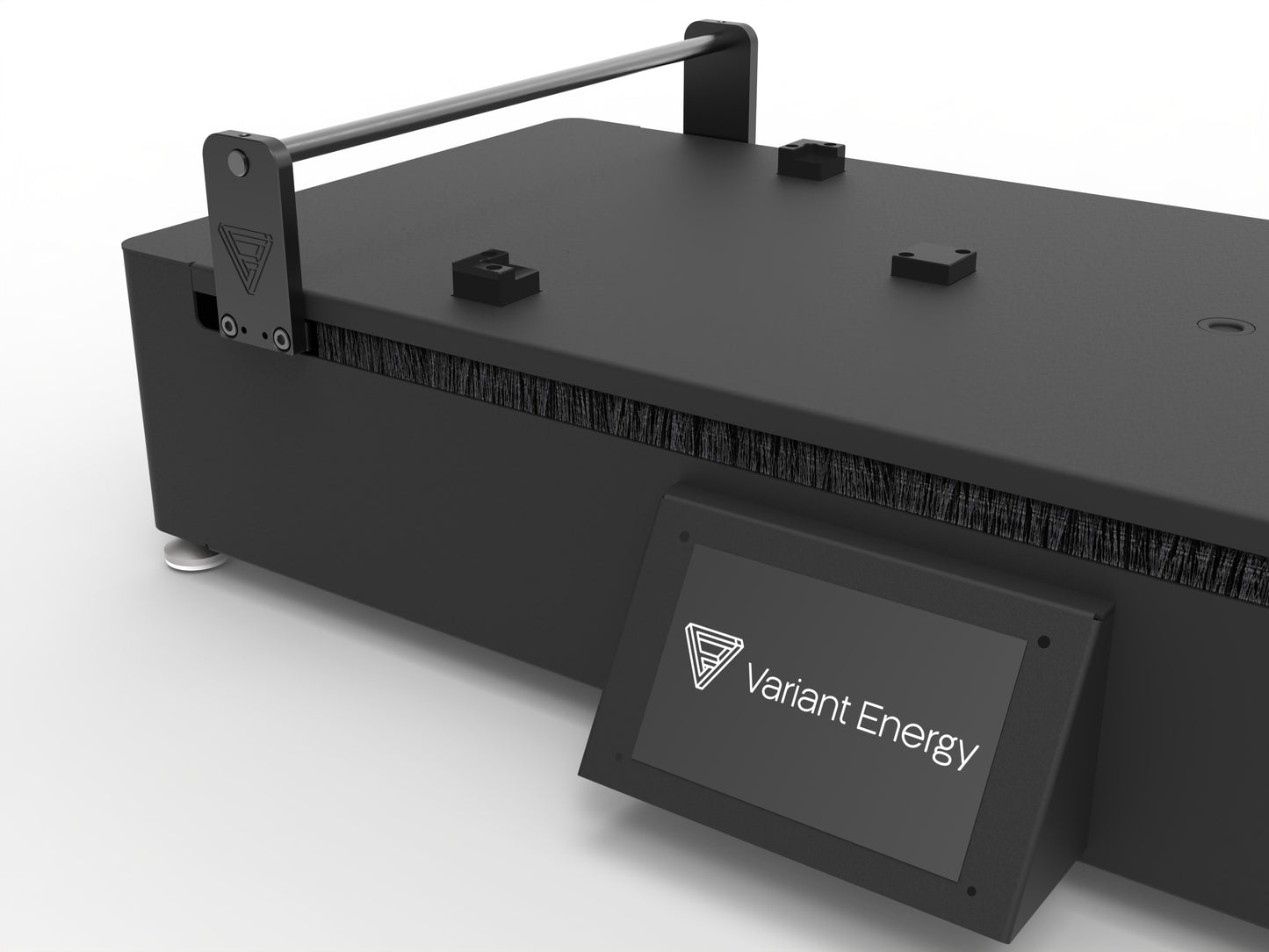

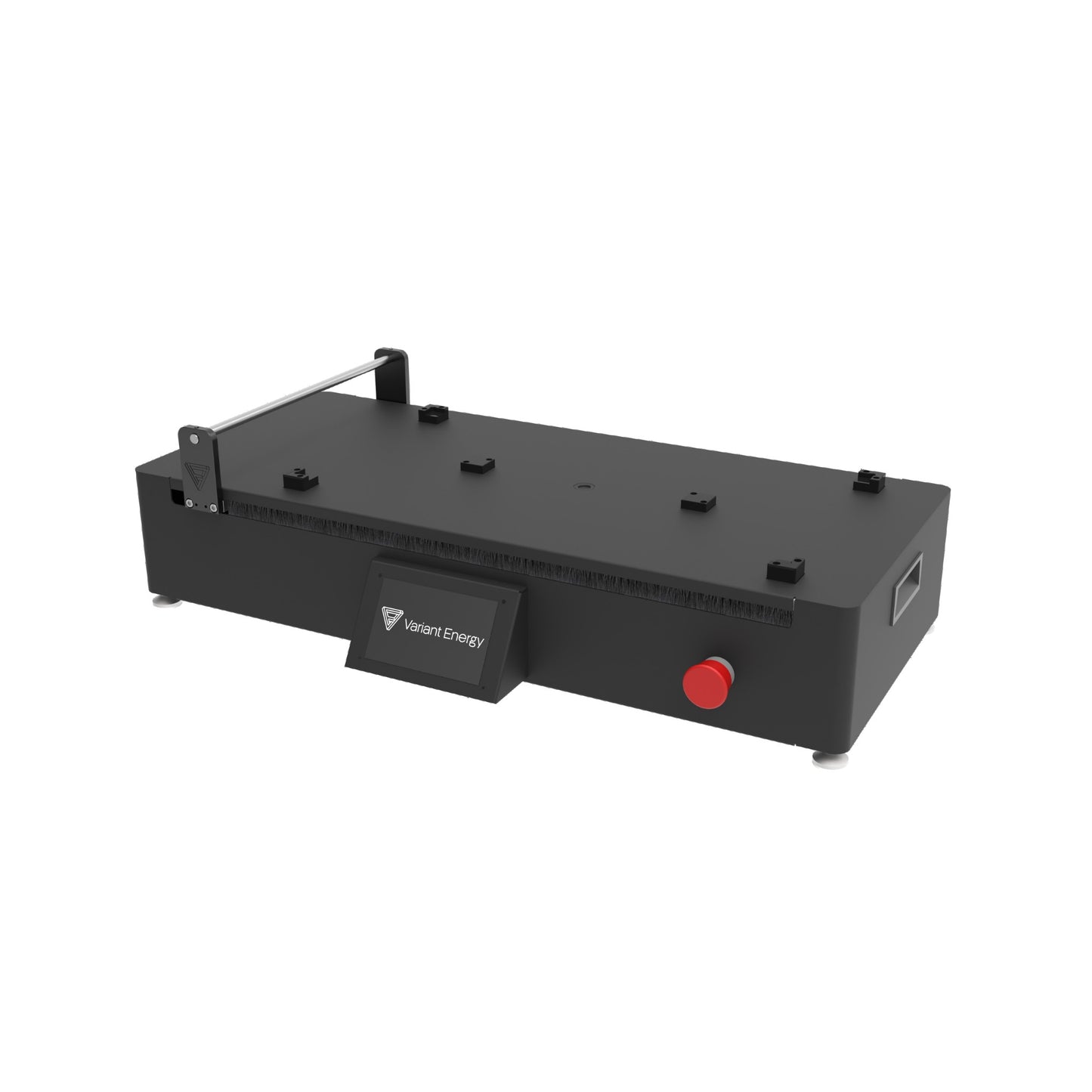

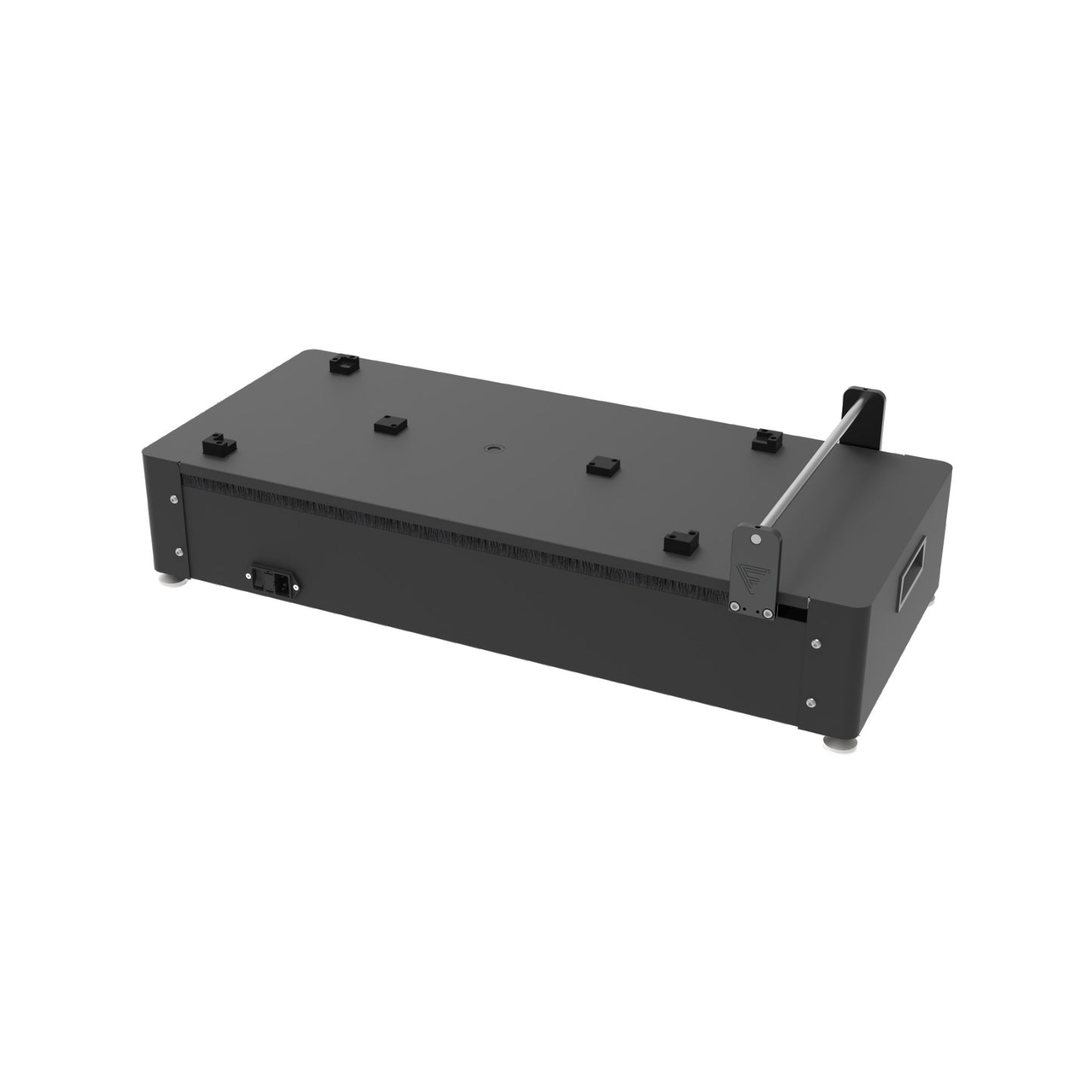

Automatic Doctor Blade Coating Applicator
Automatic Doctor Blade Coating Applicator
Produce consistent, uniform doctor blade drawdown coatings for your lab-scale battery electrode development.
Features
- Precision linear motion components for smooth, consistent actuation
- Touchscreen interface to define velocity, acceleration, and travel distance
- Machine frame with built-in leveling feet and level gauge
- Use with vacuum chuck or glass plate substrate
- Buy everything you need to get started making uniform electrode coatings here!
Specifications
Coating Type | Doctor blade |
Travel Speed | 0-500 mm/sec, +/- 1% accuracy |
Travel Distance | 0-500 mm, +/- 0.5 mm accuracy |
Travel Acceleration | 0-10,000 mm/sec^2 |
Power Supply | 120 VAC, 60 Hz or 230 VAC, 50 Hz |
Dimensions | 750(W) x 390(D) x 210(H) mm |
Weight |
14 kg |
- Contact sales@variantenergy.co for your quote
