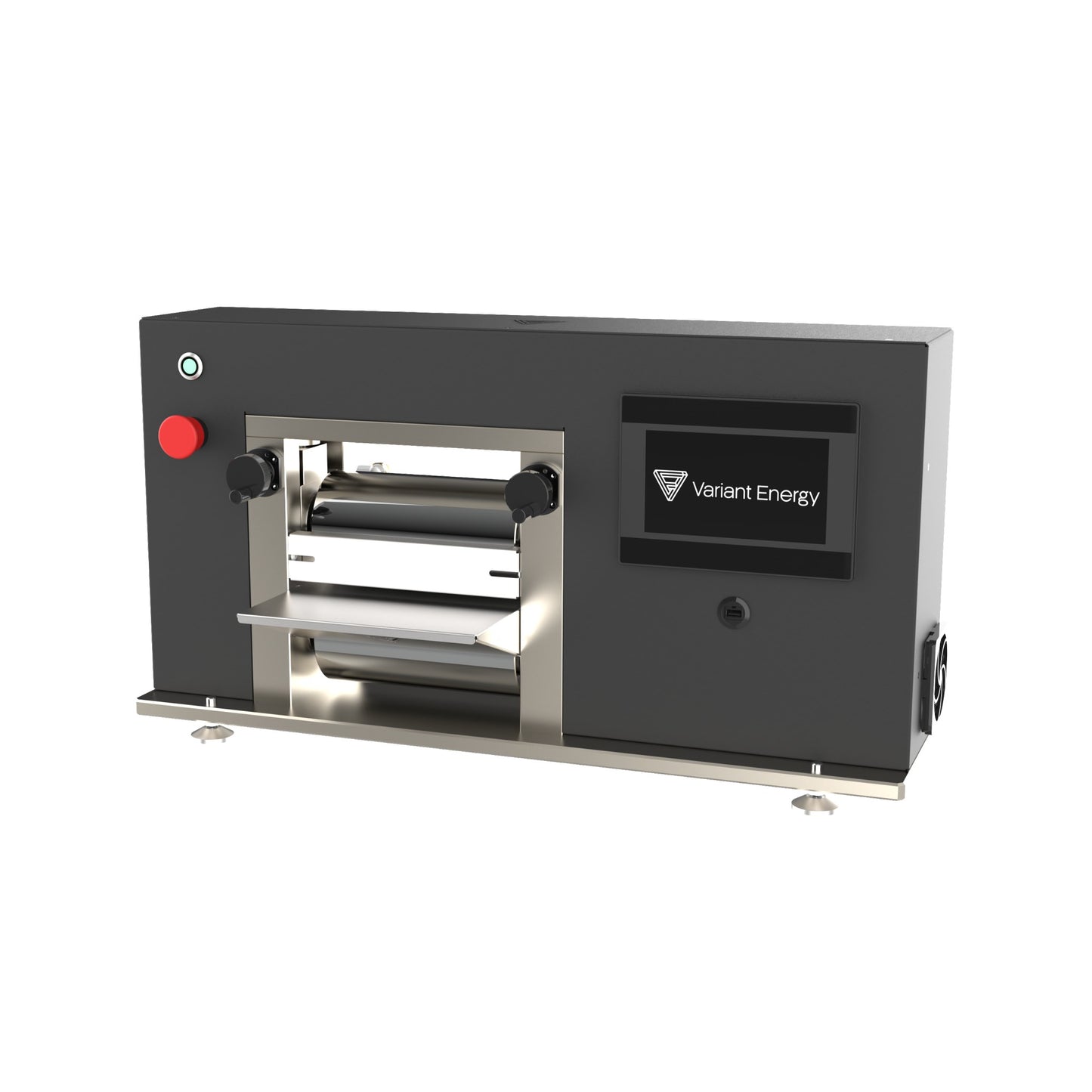

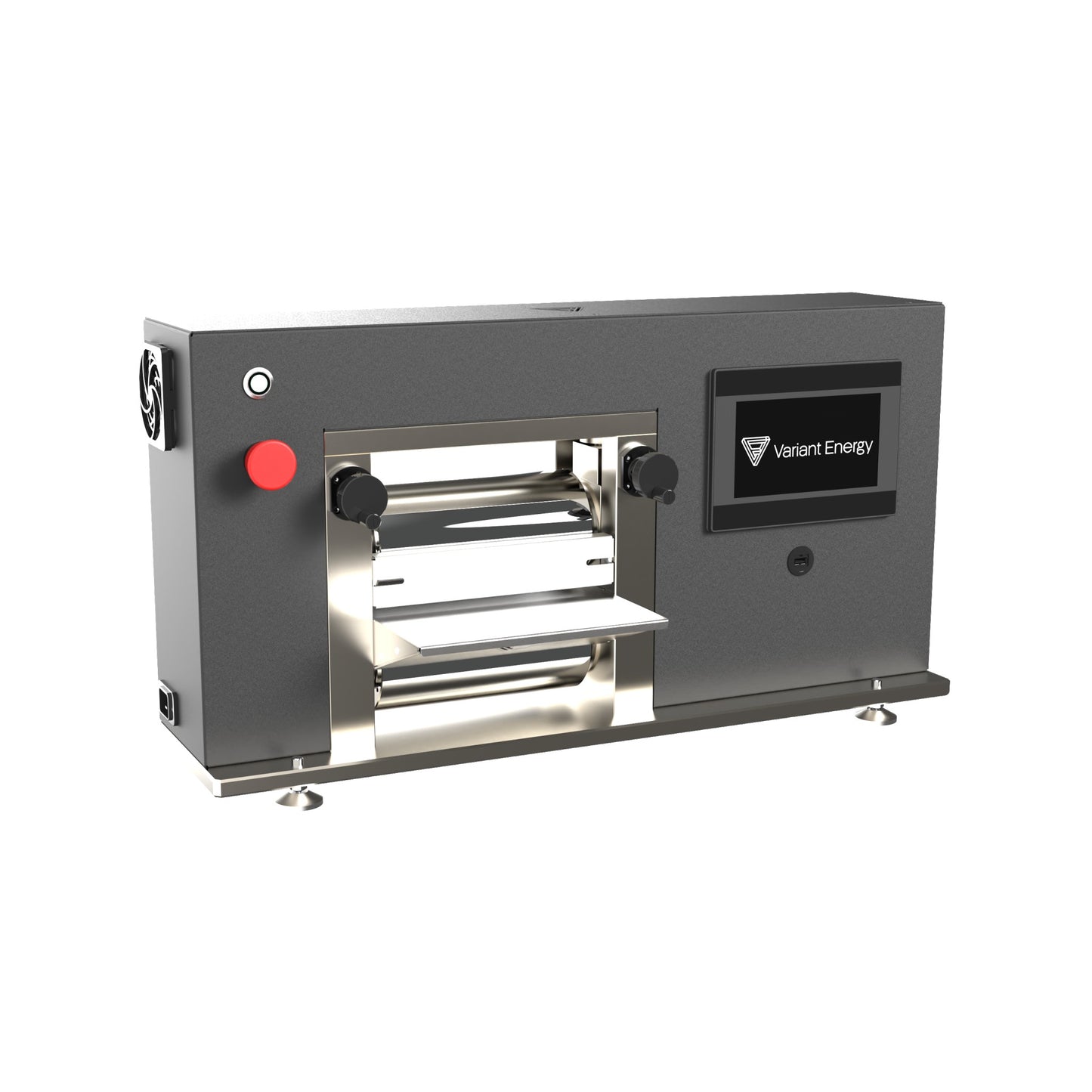

Roll Calender Press - Pro Series
Roll Calender Press - Pro Series
Accurately and repeatably densify your battery electrodes to improve electrical conductivity and volumetric energy density.
The Pro Series laboratory roll calender press is the ideal calendering solution for scientists and researchers working with all chemistries and materials. Heated, precision-ground rollers with USB logging of process parameters enables robust experimental conditions. The Pro Series Roll Calender Press will give you the necessary process parameter conditions for scale-up to pilot production and beyond.
Features
- Precision-ground, chrome plated rollers with integral electric heaters up to 150°C. Independent top and bottom PID control via PLC.
- Manual gap control set with precision screws. Digital readout to HMI and PLC with 1 um resolution
- Line speed continuously variable 0-3 m/min, control via 7" touchscreen HMI
- Load cells measure nip opening force up to 20 tons
- Process variable logging and .csv output to USB (line speed (m/min), gap (micron), roll temperature (°C), load (kN), timestamp (HH:MM:SS))
- Compatible with Ar glovebox environment
Specifications
| Roller Dimensions | 200 mm width, 100 mm diameter |
| Roller Gap | 0 - 1.0 mm, 0.001 mm resolution |
| Roller TIR | <0.01 mm @ 25°C |
| Roller Temperature | 150°C max, +/- 5°C |
| Force Measurement | 0-20 ton via load cell |
| Power Supply | 120 VAC, 60 Hz or 230 VAC, 50 Hz |
| Dimensions | 700(W) x 350(D) x 400(H) mm |
| Weight | 88 kg |
- Contact sales@variantenergy.co for your quote
