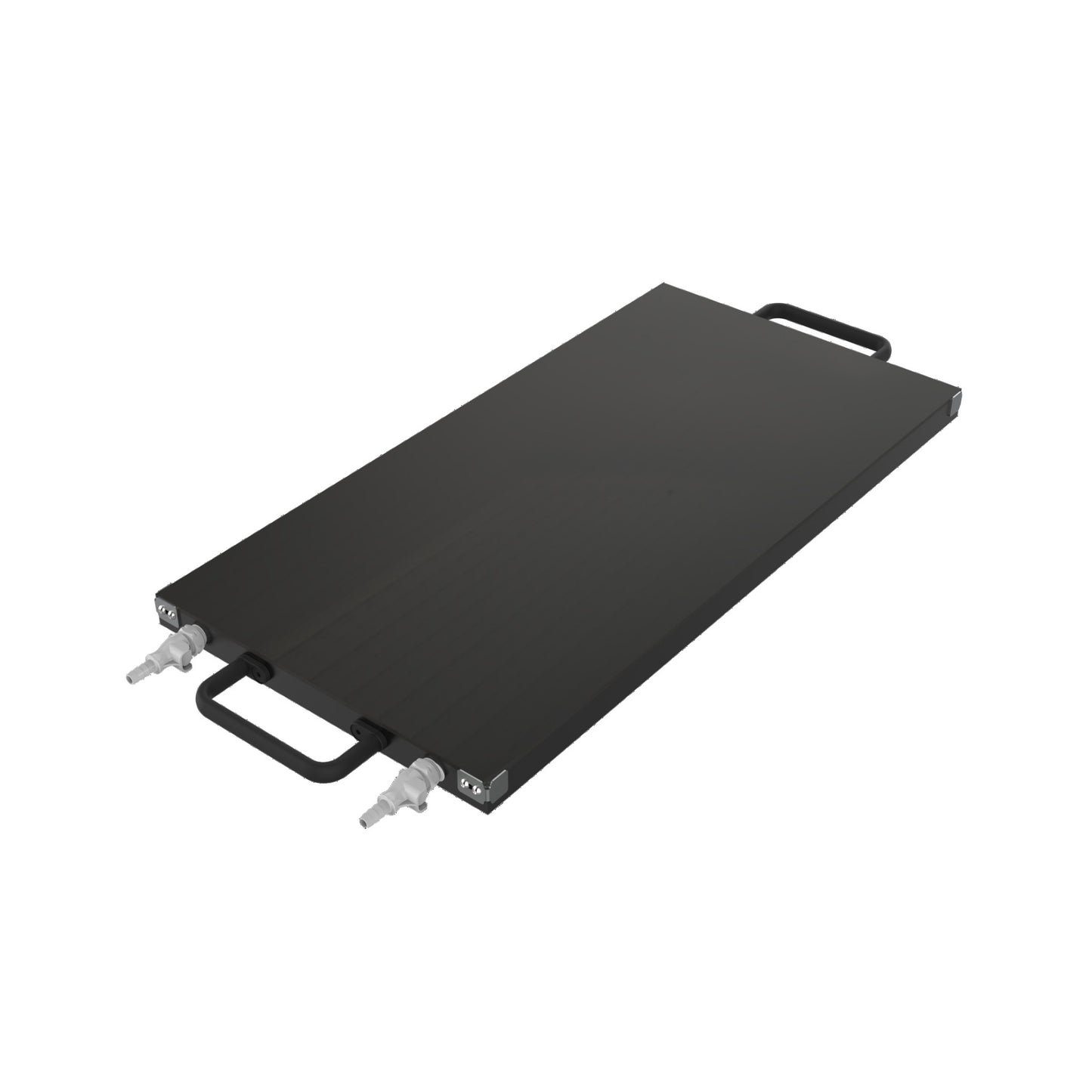

Drawdown Coating Vacuum Chuck
Drawdown Coating Vacuum Chuck
Uniform drawdown coatings start with a flat reference surface, made possible with precision ground hard anodized aluminum tooling plate. A porous vacuum diffuser surface that has also been precision-ground helps pull your substrates flat without creating dimples.
Features
- Hard anodized aluminum tooling plate, precision-ground for extreme flatness
- Precision-ground porous vacuum diffuser surface - no more dimples in your foils from drilled vacuum surfaces
- Quick-disconnect vacuum fittings
- Ergonomic handles to move coated samples to drying oven
- Vacuum pump with at least 3.0 CFM/80 LPM recommended. Pump not included.
Specifications
| Flatness | Less than 10 um |
| Dimensions | 580(W) x 250(D) x 22(H) mm |
| Weight | 6.3 kg |
- Contact sales@variantenergy.co for your quote
