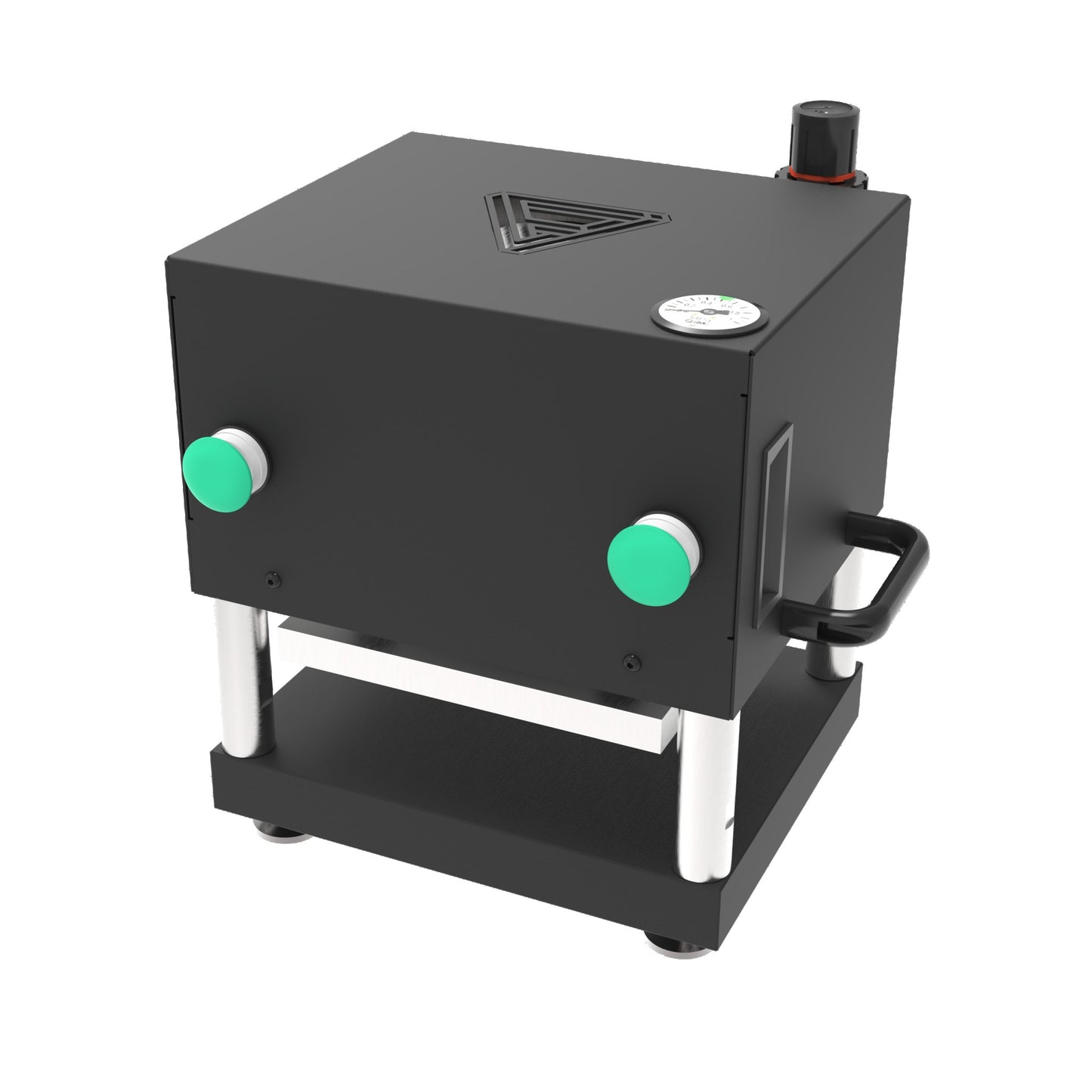

Pneumatic Steel Rule Die Press
Pneumatic Steel Rule Die Press
Quickly, efficiently, and repeatably prepare die-cut electrodes from coated foils for assembling prototype battery cells.
Features
- Hard anodized aluminum base
- Nickel-plated A36 steel press platen

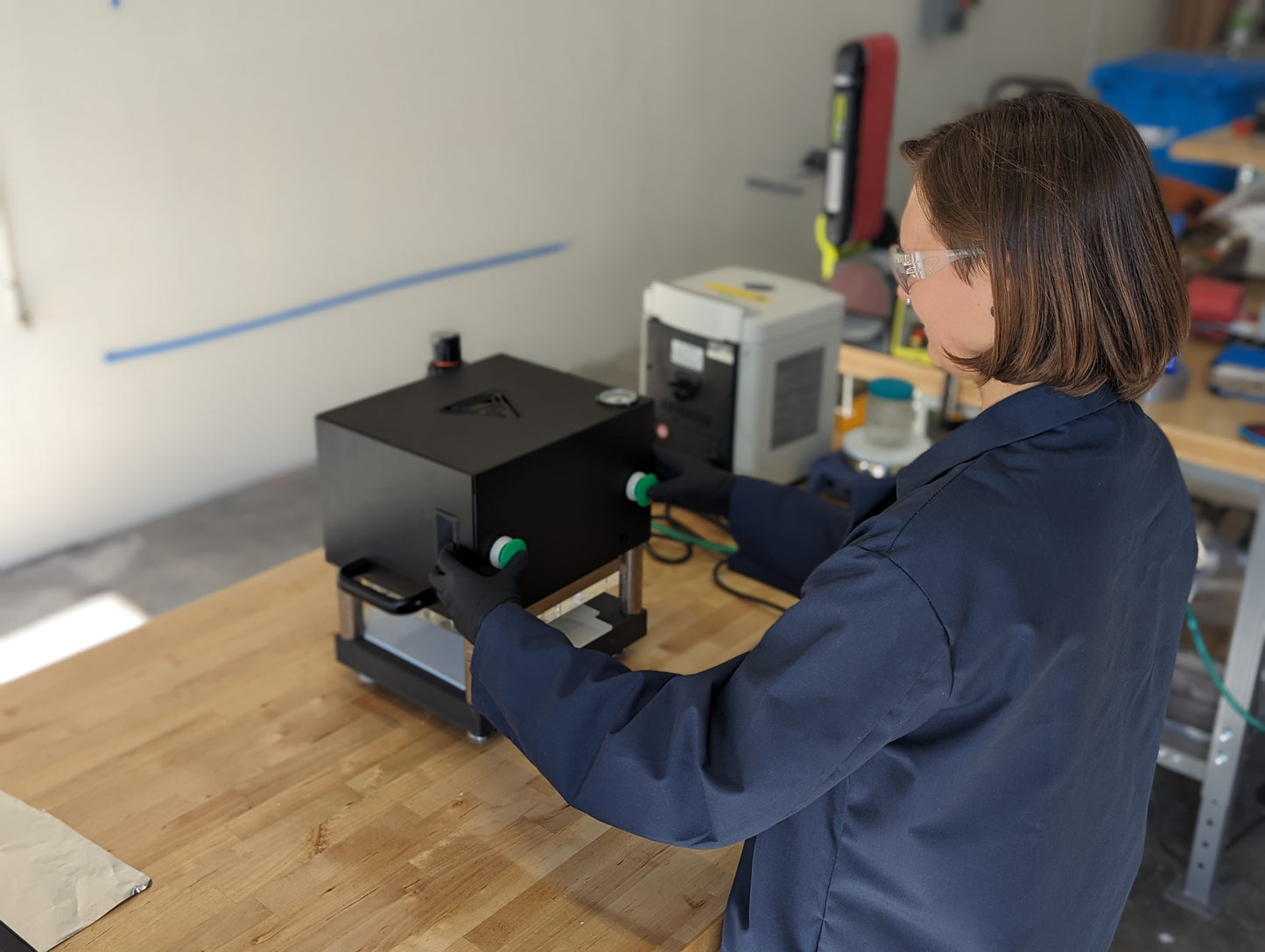

- Ergonomic two-hand anti-tie-down controls for operator safety

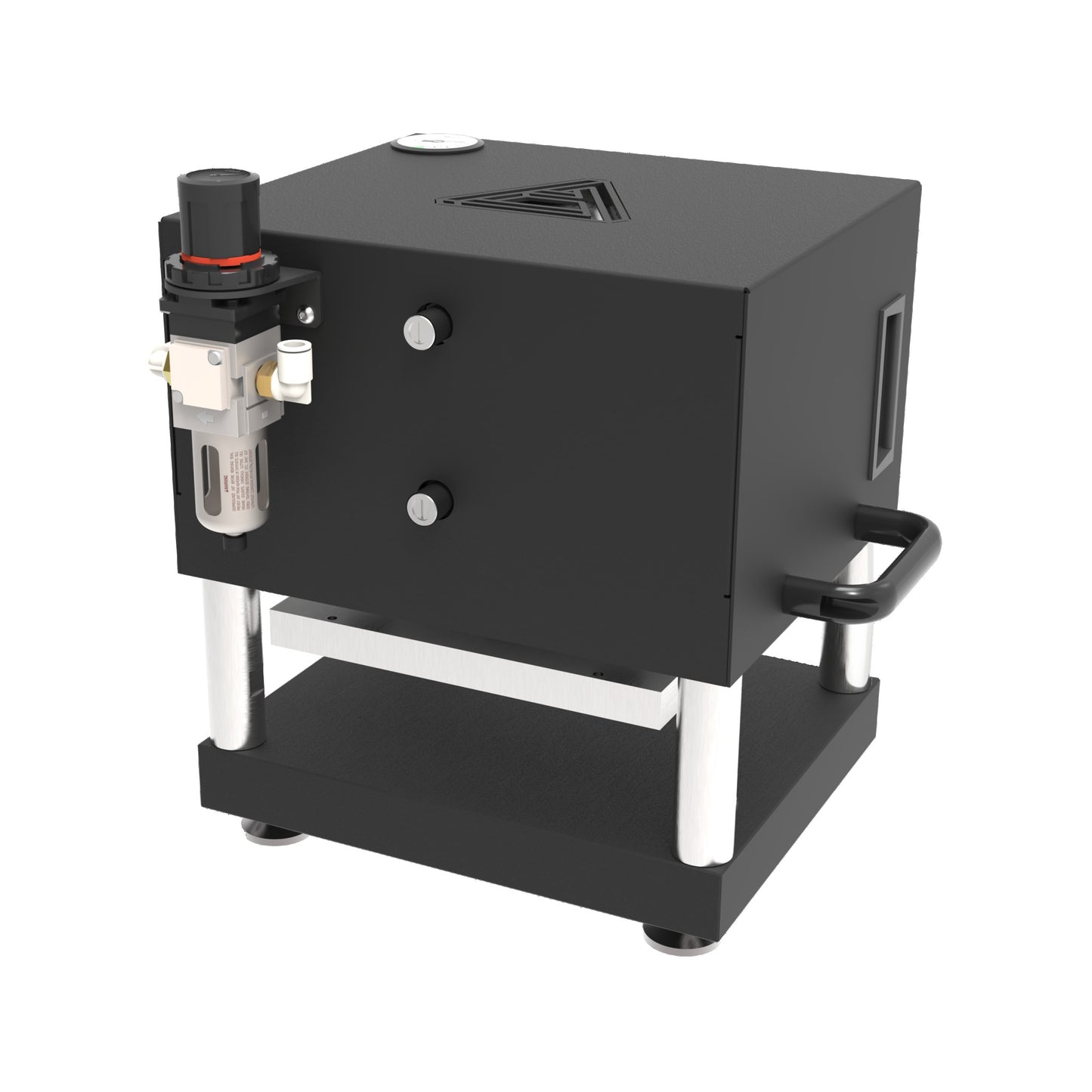

- Precision filter regulator for pressure control, output pressure gauge for process verification
- Maintenance-free linear motion guides for long-term repeatability
- Clearance between posts allows for cutting long samples
- Can be used in a glovebox (be sure to used glovebox-compatible compressed gas source)
- Compatible with lithium-ion, sodium-ion, lithium metal, and next-generation chemistries
Specifications
| Maximum Force | 2.05 tons |
| Daylight Clearance | 60 mm |
| Platen Area | 220 x 220 mm |
| Post-to-Post Clearance | Front: 238 mm, Side: 188 mm |
| Air Supply | 1.0 MPa max, air or inert gas |
| Dimensions | 400(W) x 300(D) x 345(H) mm |
| Weight | 39 kg |
- Contact sales@variantenergy.co for your quote
